DCLN R/L, Right/Left Hand External Turning Tool Holders for CN_ _ Inserts
|

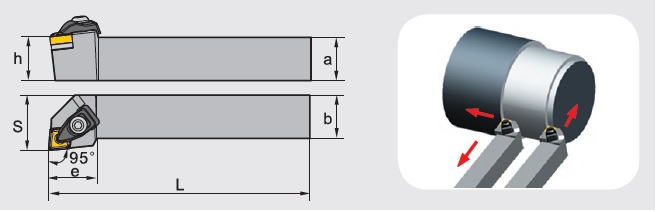

Right/left hand, double clamp type toolholder, with negative CN_ _ inserts for external turning and facing
DCLNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| DCLNR10-3A |
0.625 |
0.625 |
4.00 |
0.625 |
0.75 |
0.945 |
CN__32__ |
| DCLNR12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
0.945 |
CN__32___ |
| DCLNR16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
0.945 |
CN__32___ |
| DCLNR12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.102 |
CN__43__ |
| DCLNR16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.102 |
CN__43__ |
| DCLNR85-4E |
1.25 |
1.00 |
7.00 |
1.25 |
1.25 |
1.102 |
CN__43__ |
DCLNL Toolholders -Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| DCLNL10-3A |
0.625 |
0.625 |
4.00 |
0.625 |
0.75 |
0.945 |
CN__32__ |
| DCLNL12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.102 |
CN__43__ |
| DCLNL16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.102 |
CN__43__ |
| DCLNL85-4E |
1.25 |
1.00 |
7.00 |
1.25 |
1.25 |
1.102 |
CN__43__ |
|
 | $59.93 |
|  | $74.90 |
|  | $80.88 |
|
 | $74.90 |
|  | $80.88 |
|  | $95.88 |
|
 | $59.93 |
|  | $74.90 |
|  | $80.88 |
|
 | $95.88 |
|
