MWLN R/L, Right/Left Hand External Turning Tool Holders for WN_ _ Inserts

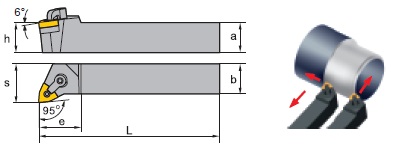

Multi-clamp toolholders, with negative WN_ _ inserts for external turning and facing
MWLNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MWLNR12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.18 |
WN__33_ |
| MWLNR16-3D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.18 |
WN__33_ |
| MWLNR12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.18 |
WN__43_ |
| MWLNR16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.38 |
WN__43_ |
| MWLNR20-4E |
1.25 |
1.25 |
7.00 |
1.25 |
1.50 |
1.38 |
WN__43_ |
MWLNL Toolholders - Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MWLNL12-3C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.18 |
WN__33_ |
| MWLNL12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.18 |
WN__43_ |
| MWLNL16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.38 |
WN__43_ |
| MWLNL20-4E |
1.25 |
1.25 |
7.00 |
1.25 |
1.50 |
1.38 |
WN__43_ |
 | $42.63 |
|  | $47.22 |
|  | $49.53 |
|
 | $47.22 |
|  | $55.31 |
|  | $42.63 |
|
 | $49.53 |
|  | $47.22 |
|  | $55.31 |
|
